Low Pressure 0.5 BAR "MAXI" Lifting Bags & Accessories

Low Pressure 0.5 BAR Low Pressure Lifting Bag Kit Double Controller 0.5 BAR Low Pressure 0.5 BAR 5m Hose Assembly - Yellow Low Pressure 0.5 Bar Connector
Low Pressure 0.5 BAR "MAXI" Lifting Bags Low Pressure 0.5 BAR "MAXI" Lifting Bag Kit Double Controller 0.5 BAR Low Pressure 0.5 BAR 5m Hose Assembly - Yellow Low Pressure 0.5 Bar Connector

Low Pressure 0.5 BAR "MAXI" Lifting Bags

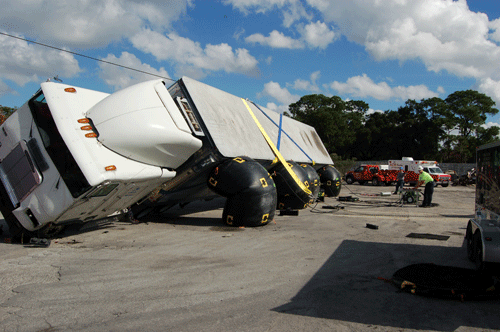

Our low pressure Maxi cushions are an excellent choice for large vehicles, trucks, trailers and aircraft recovery operations. Maxi cushions are up to 2,1 m tall with lifting capacities of up to 9 T (each). Used for uprighting large soft sided trailers, rail cars or anything that requires heavy lifting with minimum concentrated lifting force. Place multiple bags side-by-side for extremely heavy and delicate up-righting
of structurally unsound containers such as fuel tankers and thin composite-walled cargo trailers.

Fully wrapped and stitched, reinforced nylon support straps can be used as lifting and placing handles or anchorage to prevent lateral shift while lifting. Positive-grip rubber microtread top & bottom pads assure bags will stay where you put them, in all conditions. Compressors, inflation accessories and hoses come with every kit. Bags can be operated with high pressure cylinders, truck air, or brake air.

Low Pressure 0.5 BAR
Low Pressure 0.5 BAR "MAXI" Lifting Bag Technical Data
Model     MS 45  MS 122 MS 210
Art. Number   527296 527297 527298
Diameter mm 1020 1350 1450
Max. lifting capacity kg 4000 7000 9000
Max. inflation pressure bar 0.5 0.5 0.5
Lifting height m 0.45 1.22 2.1
Height empty mm 100 100 100
Nominal Content L 480 1800 3200
Max. air requirement L 840 3150 5600
Weight for one bag kg 20 35 60








Back to top

Low Pressure 0.5 BAR "MAXI" Lifting Bag Kit


Code Description   Quantity    Weight
      kg
  507802      Inflation hose 5M yellow    1 x 2.00
507803 Inflation hose 5M black 1 x 2.00
507801 Double controller 1.0 BAR 1 x 2.50
523835

Regulator 200/300 bar

c/w 2m hose

1 x 1.80
522050 Repair Kit 1 x 0.30
 Low pressure lifting bag kit


Back to top

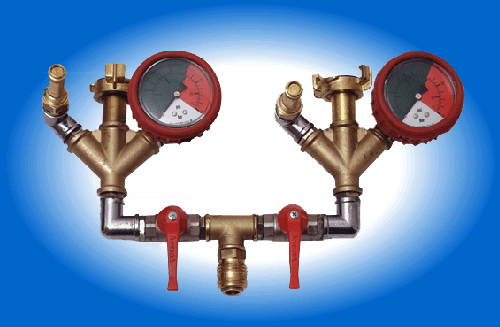

Double Controller 0.5 BAR

  • Code: 507801
 Double Controller 0.5 BAR


Back to top

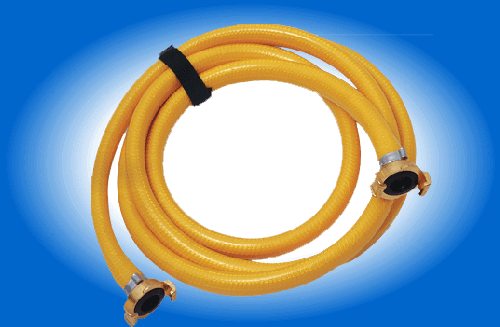

Low Pressure 0.5 BAR 5m Hose Assembly - Yellow

5m hose assembly complete with couplings - yellow  Code 507802

 Low Pressure 0.5 BAR 5m Hose Assembly - Yellow


Back to top

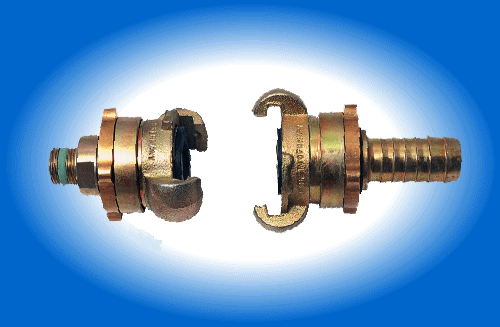

Low Pressure 0.5 Bar Connector

System 0.5 BAR

 Low Pressure 0.5 Bar Connector
product details


Back to top
