Pedal Cutter Assembly

Code: D3421

  Pedal Cutter Assembly


Back to top

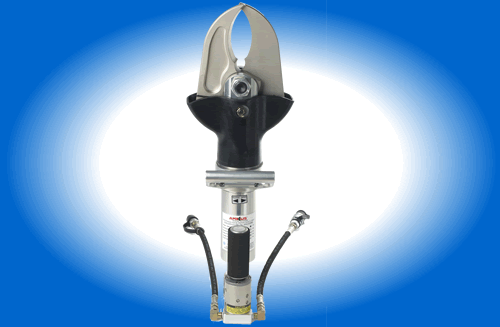

AMK-21 Heavy Duty Cutter

Certified Model NFPA 1936, 1999 edition

  • Unique 360 degree rotating handle with eight positions allows rescuer to place the handle in the best position for the desired cutting action.
  • Control valve placement provides compact design allowing greater access for the user.
  • Tool design provides excellent balance and natural hand placement.
  • Capable of all automotive cutting requirements.
  • Anodized for corrosion protection
AMK-21 Heavy Duty Cutter
Specifications:   NFPA
Level		 Performance
Rating
Length
 26.5 in.      (673 mm)
 A6
Width 9.0 in. (229 mm) B5
Depth 8.0 in. (203 mm) C5
Weight (Ready-to-use): 33.25 lbs. (15 kg) D6
Cutter Opening Distance: 6.0 in. (152 mm) E6
Cutter Opening Time: 4 seconds
Cutter Closing Time: 4 seconds
Maximum Cutting Force: 72,000 lbs. (319.7 kN)
Rated Input Pressure: 10,500 psi. (724 bar)


Back to top

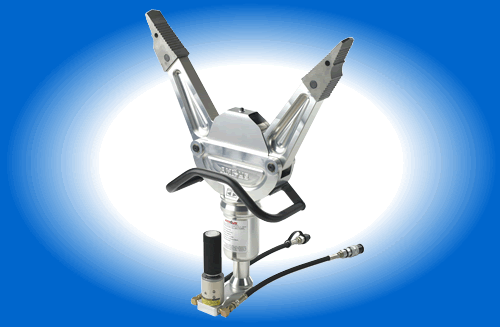

AMK-24 Spreader

Certified Model NFPA 1936, 1999 edition

  • Unique construction allows maximum useable force.
  • Tips remain parallel to the cylinder throughout the spread allowing them to stay in contact with the material continuously for maximum spread (helps avoid piercing with the tips).
  • Removable tips to accept chain package and optional tips for versatility.
  • Push button pins for easy removal of tips (eliminates possibility of losing pins in the field).
  • Control valve placement provides compact design allowing greater access for the user.
  • Excellent balance and natural hand placement.
  • Anodized for corrosion protection.
AMK-24 Spreader
Specifications:
Maximum Spreader Opening
 24.0 in 610 mm
Maximum Spreader Travel Distance 23.9 in 607 mm
Weight (Ready-to-use) 37.35 lbs 17.0 kg
Length 29.7 in 754 mm
Width 14.0 in 356 mm
Depth 8.0 in 203 mm
Rated Input Pressure 10,500 psi 724 bar
Spreader Opening Time 4 sec
Spreader Closing Time 4 sec
Maximum Spreading Force (at back of tips) 18,785 lbs 83.5 kN
Highest Spreading Force (NFPA 1936, HSF) 10,100 lbs 44.8 kN
Lowest Spreading Force (NFPA 1936, LSF) 9,145 lbs 40.6 kN
Highest Pulling Force (NFPA 1936, HPF) 6,218 lbs 27.6 kN
Lowest Pulling Force (NFPA 1936, LPF) 5,459 lbs 24.2 kN


Back to top

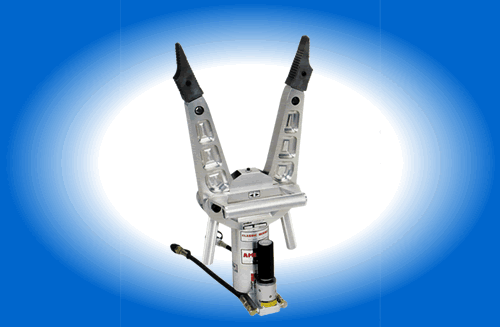

Model 30CX Spreader

  • The lightest weight, full size spreader available.
  • Unique construction allows maximum useable force.
  • Tips remain parallel to the cylinder throughout the spread.
  • Excellent balance.
  • Anodized for corrosion protection.
Model 30CX Spreader
Specifications:
Max Spreading Distance 32.0 in 813 mm
Max Spreading Force (measured at 30.2 in (767 mm) spreader tip opening) 16,950 lbs 75.4 kN
Length 30.1 in 765 mm
Width 12.0 in 305 mm
Depth 8.2 in 208 mm
Weight (including oil and hose connections) 47.5 lbs 21.5 kg
Max Operating Pressure 10,500 psi 724 bar




Back to top

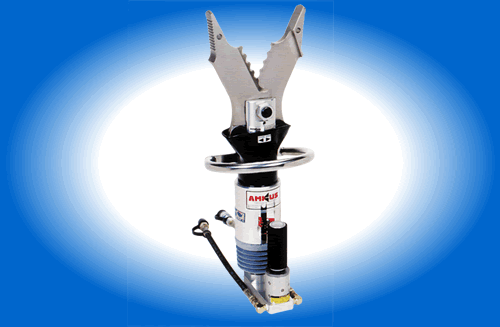

Model C-15 Combination Tool

  • Combination cutting/spreading/pulling tool.
  • Well balanced and easy to use.
  • Control valve placement reduces overall length and provides increased safety for the operator.
  • Anodized for corrosion protection.
  • D-ring handle standard
 Model C-15 Combination Tool
Specifications:
Max Spreading Distance 15.5 in 394 mm
Max Spreading Force at Tips 13,100 lbs 58.3 kN
Max Cutting Edge Opening 7.0 in 178 mm
Max Cutting Force 57,500 lbs 253.5 kN
Weight 43.0 lbs 19.5 kg
Length 26.5 in 673 mm
Width 10.0 in 254 mm
Depth 9.0 in 229 mm
Max Operating Pressure 10,500 psi 724 bar


Back to top

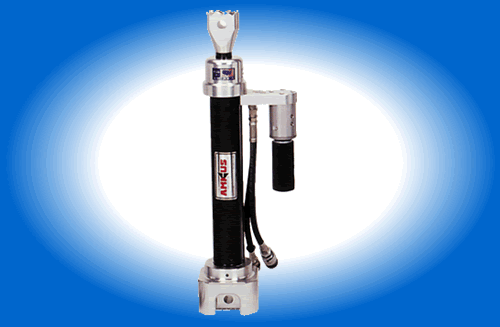

Push-Pull Ram AMK 40R

Features of all Rams:

  • Push/pull design allows use of standard AMKUS chain packages.
  • Unique base design distributes load.
  • Check valve design maintains load.
  • Anodized for corrosion protection.
  • Accessories available for increased capabilities.
  • Push-Pull Rams available in 4 different sizes AMK 20R, AMK 30R, AMK 40R and AMK 60R.
  Push-Pull Ram AMK 40R
Specifications:
Length Open 40.0 in 1016 mm
Length Closed 25,4 in 645 mm
Width Overall 8.5 in 216 mm
Depth 5.0 in 127 mm
Weight 33.0 lbs 15.0 kg
Max Push Force 30,650 lbs 136.3 kN
Max Pull Force 14,400 lbs 64.1 kN


Back to top

Demonstration Tools Available For Sale

We have the following demonstration tools available for sale and all  tools will be supplied fully serviced and certified :

  • AMK- Heavy Duty Cutters.
  • AMK- Speedway cutters.
  • AMK -30cx Spreaders.
  • AMK –C15  Combination Tools.
  • AMK- 25C   Combination Tools.
  • AMK –Rams. 20” ,30”,and 60”.
  • AMK- Power Units.



Demonstration Tools Available for Sale

Please ring John Guiney on 01665 710 730 if you would like further information on any of the demonstration tools listed above

John Guiney 01665 710 730
