SA-LB 5/120 and SA-LB 8/240
These lifting bags are designed for recovering smaller
aircraft, including business jets. The number of lifting bag sets and the type of bags will depend on the
aircraft to be recovered as well as the nature of the
incident. They can be used as stand alone recovery
systems or in combination with conventional recovery
methods.

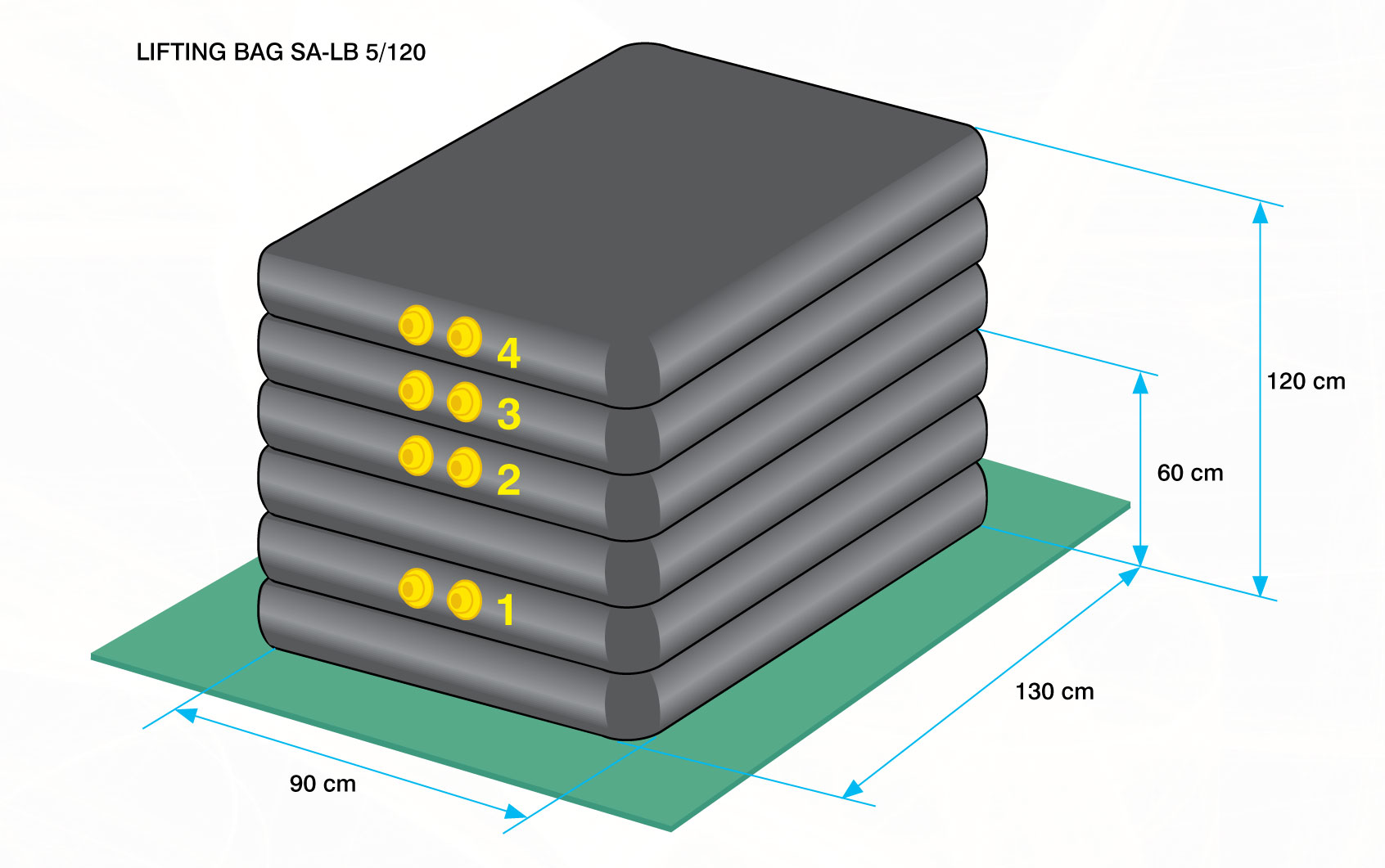

The lifting bag SA-LB 5/120 consists of one triple-
chamber bag and three single chamber bags. The
SA-LB 8/240 consists of three triple-chamber bags
and three single-chamber bags. They are packed in
special storage bags that also serve as ground protective covers.
The SA-LB 5/120 requires a 4-port deadman controller for inflation and the SA-LB 8/240 requires a 6-port
deadman controller.
|
 |
Advantages:
- Combination of triple-chamber and single-chamber
lift bags reduces the number of inflation hoses
- Simpler and lighter inflation controllers
- Damaged lift bags can easily be repaired using cold vulcanizing
- Lift bags can be folded and stored for extended period of time without structural break down
- Life expectancy from 15 to 20 years.
|
Safety:
- All lifting bags have a minimum safety factor of 5
- All seams are hot vulcanized
- Resistant to ozone and hydrocarbons
- Each lifting bag is tested at a pressure that is 30% higher than required operating pressure
- Calibrated inflation controllers with deadman.
|
| SA-LB 5/120 and SA-LB 8/240 Technical Data |
| Model |
EU |
SA-LB 5/120 |
SA-LB 8/240 |
| Part Number |
|
545630 |
|
| Size - total area (L x W) |
cm |
150 x 110
|
140 x 160 |
| Size - lifting surface(L x W) |
cm |
130 x 90 |
120 x 140 |
| Max. lifting height |
cm |
120 |
240 |
| Max. lifting capacity |
kg |
5000 |
8000 |
| Height of single chamber |
cm |
20 |
20 |
| Chambers (total) |
No |
1 + 3 |
3 + 3 |
| Insertion (deflation) height |
cm |
10 |
20 |
| Nominal content |
l |
1700 |
3430 |
| Air equipment at 0.5 BAR |
l |
2600 |
5140 |
| Weight |
kg |
30 |
116 |
| Max. inflation pressure |
BAR |
0.5 |
0.5 |
| Test pressure |
BAR |
0.65 |
0.65 |
| Bursting pressure |
BAR |
>2.0 |
>2.0 |
| SA-LB 5/120 and SA-LB 8/240 Sets |
| Code |
Description |
Set SA-LB 5/120 |
Set SA-LB 8/240 |
| 545630 |
SA-LB 5/120; 0.5 BAR with storage bag |
1 |
|
| 537227 |
SA-LB 8/240; 0.5 BAR with storage bag |
|
1 |
| 545631 |
4 port controller, deadman, 0.5 BAR |
1 |
|
| 545632 |
6 port controller, deadman, 0.5 BAR |
|
1 |
| 545635 |
SA-LB compressed air hose, 10m |
4 |
6 |
| 545637 |
SA-LB air supply hose, 10m |
1 |
1 |
| 545644 |
Padded plate, 10mm |
1 |
1 |
| 522050 |
Set of repair material |
1 |
1 |
Back to top
|
|
 |
| |

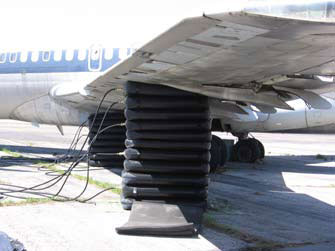

SA-LB 0.5 Bar
The unique feature of Our lifting bags is the combination of triple-chamber and single-chamber bags.
There are 5 standard models capable of lifting up to
300 cm high. A two layer rubber-coated fabric connected with thousands of mono-filament fibers assures excellent stability of the lift bags in all directions.
This results in greater safety even with the largest size
bags which are capable of lifting upwards of 46 metric tons.
|
 |
Advantages:
- Combination of triple-chamber and single-chamber bags which reduces the number of inflation hoses
- Simpler and lighter inflation controllers
- Damaged lift bags can easily be repaired using cold vulcanizing
- Lift bags can be folded and stored for extended period of time without structural breakdown
- Can be supplied with chambers connected or separate
- Life expectancy of 15 to 20 years.
|
Safety:
- All lifting bags have a minimum safety factor of 5
- All seams are hot vulcanized
- Resistant to ozone and hydrocarbons
- Each lifting bag is tested at a pressure that is 30% higher than required operating pressure
- Calibrated inflation controllers with deadman
|
| SA-LB 0.5 BAR Technical Data |
| Model |
EU |
SA-LB 3/100 |
SA-LB 14/160 |
SA-LB 30/240 |
SA-LB 30/300 |
SA-LB 45/300 |
| Code No |
|
537228 |
537229 |
537230 |
537231 |
5537232 |
| Size - total area (L x W) |
cm |
120 x 90 |
220 x 160 |
300 x 240 |
300 x 240 |
440 x 240 |
| Size - lifting surface (L x W) |
cm |
100 x 70 |
200 x 140 |
280 x 220 |
280 x 220 |
420 x 220 |
| Max. lifting height |
cm |
100 |
160 |
240 |
300 |
300 |
| Max. lifting capacity |
kg |
3500 |
14000 |
30800 |
30800 |
46200 |
| 46200 Height of single chamber |
cm |
20 |
20 |
20 |
20 |
20 |
| Chambers (total) |
No |
1 + 2 |
2 + 2 |
3 + 3 |
4 + 3 |
4 + 3 |
| Insertion (deflation) height |
cm |
7 |
10 |
15 |
20 |
20 |
| Nominal content |
l |
880 |
5350 |
16400 |
20500 |
29100 |
| Air requirement at 0.5 BAR |
l |
1300 |
8000 |
24500 |
30700 |
43800 |
| Weight |
kg |
22 |
100 |
260 |
330 |
500 |
| Max. inflation pressure |
bar |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
| Test pressure |
bar |
0.65 |
0.65 |
0.65 |
0.65 |
0.65 |
| Bursting pressure |
bar |
>2.0 |
>2.0 |
>2.0 |
>2.0 |
>2.0 |
| SA-LB 0.5 BAR Sets |
| Model |
|
SA-LB 3/100 |
SA-LB 14/160 |
SA-LB 30/240 |
SA-LB 30/300 |
SA-LB 45/300 |
| Code |
Description |
291223 |
291225 |
291226 |
291227 |
291228 |
| 537229 |
SA-LB 3/100; 0.5 BAR with storage bag |
1 |
|
|
|
|
| 537229 |
SA-LB 14/160; 0.5 BAR with storage bag |
|
1 |
|
|
|
| 537230 |
SA-LB 30/240; 0.5 BAR with storage bag |
|
|
1 |
|
|
| 537231 |
SA-LB 30/300; 0.5 BAR with storage bag |
|
|
|
1 |
|
| 537232 |
SA-LB 45/300; 0.5 BAR with storage bag |
|
|
|
|
1 |
| 545645 |
Padded plate for SA-LB 3/100;10mm |
1 |
|
|
|
|
| 545646 |
Padded plate for SA-LB 14/160;10mm |
|
1 |
|
|
|
| 545647 |
Padded plate for SA-LB 30/240 and 30/300;10mm |
|
|
1 |
1 |
|
| 545648 |
Padded plate for SA-LB 45/300;10mm |
|
|
|
|
1 |
| 545651 |
Transport box for SA-LB 3/100 |
1 |
|
|
|
|
| 545652 |
Transport box for SA-LB 14/160 |
|
1 |
|
|
|
| 545653 |
Transport box for SA-LB 30/240 and 30/300 |
|
|
1 |
1 |
|
| 545654 |
Transport box for SA-LB 45/300 |
|
|
|
|
1 |
| 522050 |
Set of repair material |
1 |
1 |
1 |
1 |
1 |
Back to top
|
|
|
| |
Recovery Categories
The selection of the type and size of the lifting bags is based on 5 different categories and depends on the following:
- Type of aircraft and type of recovery
- Weight of the aircraft
- Accessibility of aircraft surfaces
- Requirements as listed in manufacturer’s Aircraft Recovery Manual
Listed under each category is also additional equipment recommended for the successful completion of the recovery process.
|
 |
|
| Lifting Bag Sets SA-LB - Categories; 0.5 BAR |
| Code |
Description |
Cat.5 |
Cat.4 |
Cat.3 |
Cat.2 |
Cat.1 |
| 291225 |
Set of SA-LB 14/160 |
3 |
|
|
|
|
| 291226 |
Set of SA-LB 30/240 |
|
2 |
2 |
2 |
2 |
| 291227 |
Set of SA-LB 30/300 |
|
2 |
4 |
5 |
4 |
| 291228 |
Set of SA-LB 45/300 |
|
|
|
|
2 |
| 545636 |
SA-LB compressed air hose, 20m |
12 |
28 |
40 |
47 |
54 |
| 545637 |
SA-LB air supply hose, 10m |
4 |
8 |
10 |
20 |
20 |
| 545631 |
4 port controller, deadman, 0.5 BAR |
3 |
|
|
|
|
| 545633 |
10 port controller, deadman, 0.5 BAR |
|
4 |
6 |
7 |
8 |
| 545638 |
Compressed air distributor |
1 |
1 |
1 |
2 |
2 |
| 545641 |
Padded plate for SA-LB 14/160;30mm |
3 |
|
|
|
|
| 545642 |
Padded plate for SA-LB 30/240 and 30/300;10mm |
|
4 |
6 |
7 |
6 |
| 545643 |
Padded plate for SA-LB 45/3000;30mm |
|
|
|
|
2 |
| 545639 |
Compressor Type SA-LB 1 |
1 |
1 |
1 |
1 |
1 |
Back to top
|
|
|
| |
Contour Matching
To facilitate aircraft recovery, we have added contour matching equipment to the lifting bag sets.
There are two ways to achieve contour matching:
- By using contact chambers
- By using vacuum chambers
Contact chambers contour matching consists of individual inflatable elements positioned in such a way that there is an optimum contact with the surface of the aircraft, which is particularly important when the aircraft surface is at an angle. Padded plate (10mm)is used as protection from sharp edges or protrusions.
Most modern aircraft have wings that angle upwards which make the lifting process more
difficult. The vacuum chamber system offers additional advantages:
- Meets the requirements of aircraft manufacturers
- High stability
- Ability to adapt to any shape
- Low skin pressure
Detailed instructions on the use of contour matching are included in the Instructions/Safety
Manual..
|
 |
| Code |
Description |
Cat.3 |
Cat.2 |
Cat.1 |
| 545655 |
SA-LB chamber 500 x 2000mm, 0.5 BAR |
6 |
10 |
12 |
| 545656 |
SA-LB chamber 1000 x 2200mm, 0.5 BAR |
6 |
10 |
12 |
| 545657 |
SA-LB chamber 1400 x 2200mm, 0.5 BAR |
3 |
4 |
6 |
| 545658 |
SA-LB chamber 1000 x 2000mm, VACUM |
7 |
10 |
14 |
| 545635 |
SA-LB compressed air hose, 10m |
15 |
25 |
30 |
| 545640 |
SA-LB compressed air hose, 10m VACUM |
7 |
10 |
14 |
| 545633 |
10 port controller, deadman, 0.5 BAR |
1 |
3 |
3 |
| 545634 |
10 port controller, deadman, 0.5 VACUM |
1 |
1 |
2 |
| 545649 |
Filling sack 400 x 600, filled with styropore |
50 |
55 |
60 |
| 545638 |
Compressed air distributor |
1 |
1 |
1 |
