Medium Pressure 1.0 BAR Lifting Bags

Our medium 1.0 BAR pressure air bags are ideally suited for rescuing people trapped under a vehicle in road accidents, plane crashes, or collapsed tunnels, bridges and formworks, namely in situations where conventional rescue methods cannot be employed or would be too time-consuming. Our air bags are effective on soft ground, uneven and gravel as well as snow-covered and frosted ground.
The combination of materials in our air bags provide a high level of safety during use. The base and the top of the bag are a thick multi-layer of textile-reinforced rubber with a good puncture resistance. The lateral wall is manufactured from a selected polyamide fabric providing a corresponding three - to fourfold safety factor (operating pressure/bursting pressure).

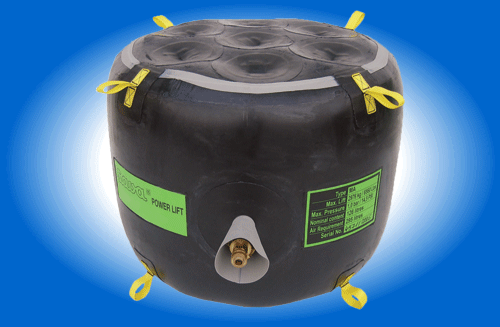

Medium Pressure Kevlar Cord Reinforced Lifting Bags
Medium Pressure Lifting Bag Technical Data
Model   MA MB MC MD
Art. Number   521478 521479 521481 521482
Diameter mm x mm 610 760 910 1220
Max. lifting capacity kg 2976 4650 6694 11902
Max. inflation pressure bar 1.0 1.0 1.0 1.0
Lifting height m 0.43 0.59 0.61 1.00
Height empty mm 50 50 50 50
Max. air requirement L 295 620 900 3010
Weight per set kg 15 24 45 70








Back to top

Medium Pressure Lifting Bag Kit


Code Description   Quantity    Weight
      kg
  521483       Carry valise Type MA*     1 x 1.00
521485 Carry valise Type MB* 1 x 1.25
521486 Carry valise Type MC* 1 x 1.50
521487 Carry valise Type MD* 1 x 2.00
504063 Inflation hose 5M yellow 1 x 1.50
525662 Inflation house 5M red 1 x 1.50
504061 Double controller 1.0 BAR 1 x 2.00
528119   Deadman controller 1.0 BAR  1 x 3.10
523835

Regulator 200/300 bar

c/w 2m hose

1 x 1.80
522050 Repair Kit 1 x 0.30

* Carry valise can store 2 cushions

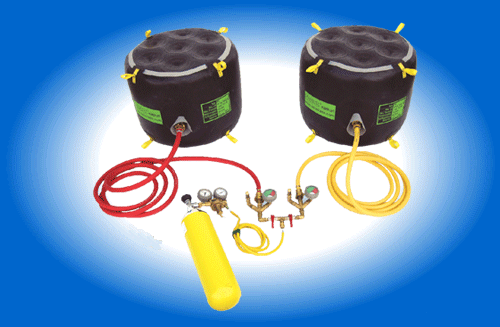

 Medium pressure lifting bag kit


Back to top

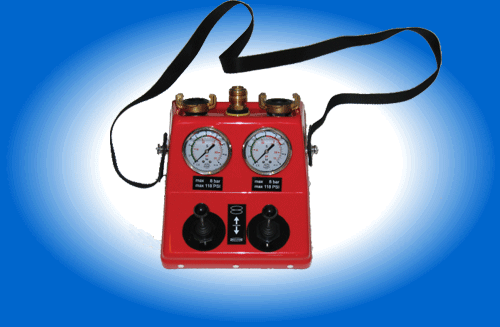

Dead Man Lever Operated Dual Control Unit 1.0 Bar

Code: 528119
Dead man lever operated dual control unit




Back to top

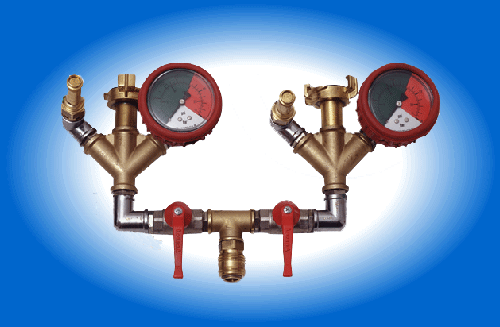

Double Controller 1.0 BAR

  • Code: 504061
 Double controller 1.0 BAR


Back to top

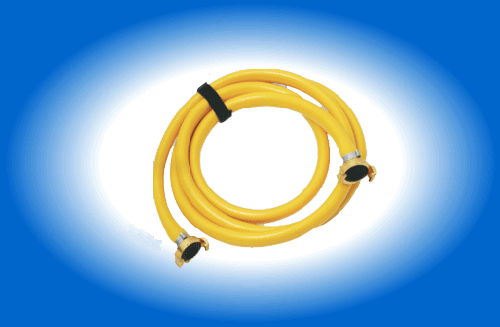

Medium Pressure 1.0 BAR 5m Hose Assembly - Yellow

5m hose assembly complete with couplings - yellow  Code 504063

 Medium Pressure 1.0 BAR 5m hose assembly


Back to top

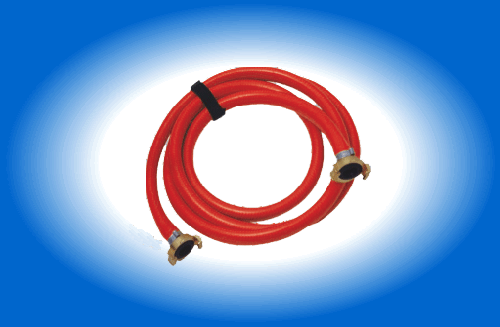

Medium Pressure 1.0 BAR 5m Hose Assembly - Red

5m hose assembly complete with couplings - red  Code 525662

 5m hose assembly complete with couplings - red Code 525662
product details


Back to top

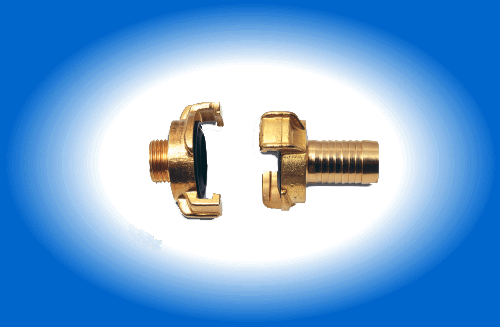

Medium Pressure 1.0 Bar Connector

System 1.0 BAR

 Medium Pressure 1.0 Bar Connector
product details
