MINI LEAK SEALING BAGS T1,T2,T3
Mini sealing bags of T1, T2, T3 type are used for sealing of tanks and barrels from 100 to 900 mm in diameter. Sealing bags are made of soft rubber. Their cord
structure assures proper flexibility and capacity.
Sealing bags are equipped with quick acting couplings for deflation and inflation.
|
 |
 |
Each SET consists of : |
| Code |
Description |
Quantity |
Weight (kg) |
528873
|
Foot pump with safety valve 1,5 bar |
1 |
2.50 |
| 60167 |
Fasten belt, L=1500mm, yellow |
2 |
0.20 |
| 60169 |
Fasten belt, L=3000mm, yellow |
3 |
0.40 |
.
| Sealing Bags Technical data |
Type
|
T1
|
T2 |
T3 |
Code |
78082 |
78096
|
78099 |
Dimensions (cm) |
15 x 15 x 1.2 |
22.5 x 22.5 x 1.2 |
30 x 30x 1.2 |
Sealing surface (cm) |
10 x 10 |
17.5 x 17.5 |
25 x 25 |
Max. inflation pressure (bar) |
1.5 |
1.5 |
1.5 |
Sealing Pressure, bar |
1.4 |
1.4 |
1.4 |
Volume (l) |
1.2 |
4.5 |
10.5 |
Weight (kg) |
0.36 |
0.81 |
1.37 |
Back to top
|
|
 |
| |
LARGER LEAK SEALING BAGS M1, M2
For quick and efficient sealing of barrels, pipes and
tanks for diameters larger than 500 mm.
Sealing bag M1 has two openings on each side for
pulling straps while the M2 sealing plug has two swivel eyelet bolts instead.
Sealing bags are made of soft rubber. Suitable cord
structure assures flexibility and optimum performance.
They are equipped with quick coupling for inflating
and deflating.
|
 |
|
Technical data |
Type
|
M1 |
M2 |
Code |
60043
|
60350 |
Dimensions (cm) |
62 x 30 x 2 |
62 x 30 x 2 |
Sealing surface (cm) |
45 x 23.5 |
45 x 23.5 |
Max. inflation pressure |
1.5 |
1.5 |
Sealing pressure (bar) |
1.4 |
1.4 |
Volume (l) |
20 |
20 |
Weight (kg) |
4.8 |
6.2 |
.
| Technical data |
Type
|
|
M1 - 6 bar |
m1 - 10 bar |
Part Number |
|
531455
|
531456 |
Size |
inch x inch x in
|
24.4 x 11.8 x 2 |
24.4 x 11.8 x 2 |
L x B x H |
cm x cm x cm |
62 x 30 x 5 |
62 x 30 x 5 |
Sealing |
inch x inch |
16 x 8 |
14 x 6 |
Surface |
cm x cm |
40 x 20 |
35 X 15 |
Sealing |
PSI |
72 |
130 |
Pressure |
bar |
5 |
9 |
Weight |
lb |
24.25 |
24.25 |
kg |
11 |
11 |
Maximum inflation pressure |
PSI |
86.4 |
144 |
bar |
6 |
10 |
Maximum Air Requirement |
gal |
5.28 |
18.49 |
L |
20 |
70 |
 |

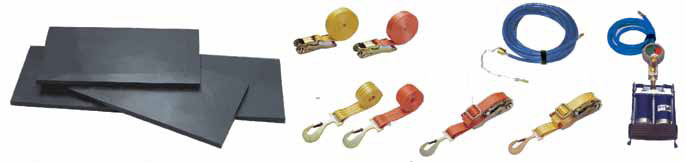

SET M1 consist of: |
Code
|
Description |
Quantity |
Weight (kg) |
60043 |
M1 type leak sealing bag |
1 |
4.7 |
528873 |
Foot pump with safety valve, 1,5 bar |
1 |
2.5 |
529094 |
Bag inflation hose Ø 8, 10 m, blue, with chain and deflation nipple |
1 |
1.2 |
60166 |
Tensioning and extensioning belt with ratchet ,
L=10 m, yellow |
2 |
2.0 |
60165 |
Tensioning and extensioning belt with ratchet,
L=10 m, orange |
2 |
2.0 |
524551 |
Sealing plate BR, 600 x 300 x 25, CR |
2 |
3.3 |
524552 |
Sealing plate BR, 1000 x 300 x 25, CR |
1 |
5.4 |
528304 |
Acid protective cover M1 |
1 |
0.5 |
.
|
SET M1 consist of: |
Code
|
Description |
Quantity |
Weight (kg) |
60350
|
M2 type leak sealing bag
|
1 |
6.2 |
528873 |
Foot pump with safety valve, 1,5 bar |
1 |
2.5 |
529094 |
Bag inflation hose Ø 8, 10 m, blue, with chain and deflation nipple |
1 |
1.2 |
60353 |
Ratchet belt, L=2 m, orange
|
1 |
1.5 |
60357 |
Ratchet belt, L=2 m, yellow |
1 |
1.5 |
60354 |
Adjustable fastening belt, L=5 m, orange |
1 |
0.8 |
60365 |
Adjustable fastening belt, L=5 m, yellow |
1 |
0.8 |
60166 |
Tensioning and extensioning belt with ratchet,
L=10 m, yellow |
1 |
2.0
|
60165 |
Tensioning and extensioning belt with ratchet,
L=10 m, orange |
1 |
2.0 |
524551 |
Sealing plate BR, 600 x 300 x 25, CR |
2 |
3.3 |
524552 |
Sealing plate BR, 1000 x 300 x 25, CR |
1 |
5.4 |
525564 |
Acid protective cover M2 |
1 |
0.5 |
Back to top
|
|
|
| |
SEALING BANDAGES
Choice of seven different size sealing bandages to
fit pipes and other cylindrical shaped containers. The
full range of bags fits pipes and tanks from 5-48 cm
diameter.
The bandages are made with a highly chemical-resistant rubber compound, which also retains a high level
of flexibility for the most demanding applications and
situations.
|
 |
|
|
Bandages
Technical data |
| Code
|
Type |
Width (mm) |
Length (mm) |
Height (mm) |
Size Usage
Range (mm) |
Inflation Pressure (bar) |
Weight (kg) |
515713 |
SB1 |
125 |
250 |
10 |
50 - 80
|
1.5 |
2.1 |
525813 |
SB2 |
125 |
980 |
10 |
50 - 200 |
1.5 |
3.5 |
525065 |
SB3 |
210 |
980 |
10 |
50 - 200 |
1.5 |
3.9 |
525066 |
SB4 |
210 |
1700 |
10 |
200 - 450 |
1.5 |
6.7 |
525277 |
SB5 |
250 |
800 |
10 |
50 - 180 |
1.5 |
4.3 |
514376 |
SB6 |
450 |
650 |
10 |
50 - 150 |
1.5 |
5.5 |
516042 |
SB7 |
450 |
1300 |
10 |
100 - 350 |
1.5 |
9.1 |
525814 |
SB8 |
450 |
1700 |
10 |
200 - 450 |
1.5 |
11.1 |
Back to top
|
|
|
| |
VACUUM DRAINAGE BAG
Vacuum drainage bags use suction to attach to tanks or containers. Vacuum drainage bags need no belts
or tightening chains.
The vacuum is achieved using the included
venturi pump which is operated using compressed air.
Vacuum drainage bags work very well on flat
surfaces where belts don’t perform as well.
Attach bags to any flat or large radius tank
with smooth surfaces.
Stainless steel drain allows controlled transfer of liquids from the tank through the bag.
|
 |
|
Vacuum leak drainage bag |
Part Number |
|
528345 |
Size |
Ø mm
|
500 |
Sealing surface |
Ø mm |
500/200 |
Required Inflation Pressure |
bar |
8 |
Vacuum |
bar |
0.85 |
Weight |
kg |
5.4 |
|
Sava vacuum TB 50 SET consist of: |
Code
|
Description
|
Quantity |
Weight (kg) |
76686 |
Bag Inflation hose - 8 mm, 10m, yellow |
1 |
1.20 |
528345 |
Leak Sealing Vacuum bag TB - 50 mm |
1 |
5.40 |
529103 |
Ball valve, storz D, stainless |
1 |
0.55 |
529153 |
Transparent venting and drainage hose, 5 m, storz D |
1 |
1.40 |
Back to top
|
|
|
| |
DRAINAGE SEALING BAG
Drainage sealing bags represent a supplement to
Sava sealing program. Drainage sealing bags are
used for storage tanks, truck tankers and railway tankers. Drainage sealing bags can be used in contact
with toxic substances and petrochemicals.
Stainless steel drain allows liquids to be transferred to other containers for transport and storage.
|
 |
| Vacuum leak drainage bag |
Part Number
|
|
528344 |
| Size (LxWxH) |
|
62 x 30 x 5.5 |
| Sealing surface |
cm x cm |
49 x 29 |
| Sealing surface |
cm x cm |
40 x 20 x 3.5 |
| Required Inflation Pressure |
bar |
1.5 |
| Sealing pressure max. |
bar |
1 |
| Air requuiremen |
l |
15 |
| Weight |
kg |
10.5 |
.
|

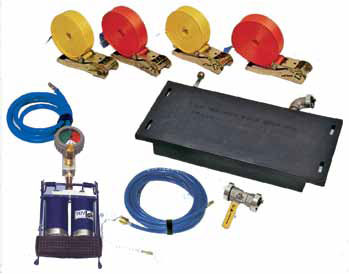

SET consists of : |
Code |
Description
|
Quantity |
Weight (kg) |
528344 |
Leak drainage bag M1-1 |
1 |
10.50 |
528873 |
Foot pump with safety valve 1,5 bar
|
1 |
2.50 |
529094 |
Inflation hose, 10m, blue with chain and deflation nipple |
1 |
1.20 |
60166 |
Fastening belt, yellow, 10m |
2 |
2.00 |
60165 |
Fastening belt, orange, 10m |
2 |
2.00 |
529103 |
Ball valve, storz D, stainless |
1 |
0.56 |
529153 |
Transparent venting and drainage hose, 5m,
storz D |
1 |
1.4 |

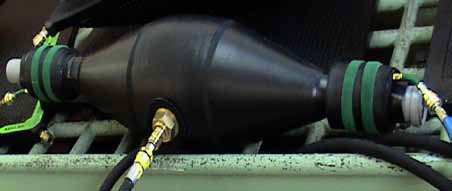

| DRAINAGE LEAK SEALING BAG FDB - FL 50; FL 80 |
Drainage leak sealing bags are a perfect solution when the usage of
other sealing bags is impossible, especially in cases of leakage on tube
connections and junctions. Drainage leak sealing bags have a built-in
zipper that enables simple positioning. Each side also has a pneumatic
element which prevents side outflow and together with the waterproof
zipper guarantees tightness of the bag itself. Drainage leak sealing bag
also has a built-in stainless steel ball valve for liquid release.
The set also includes flexible sealing sleeves made of soft rubber that
can be attached under inflatable side elements or directly onto the tube
and decrease the influence of tube unevenness and the resulting leaking
of the bag. |
|
Back to top
|
|
|
| |
Decontamination Unit
Inflatable decon shower units are used for emergency decontamination in cases of exposure to hazardous waste materials, chemical spills, as well as chemical and biological WMDs.
Therefore, it should be standard equipment for hazmat response teams.
Our decon units are produced in three different versions:
• DE22 Decon unit with pre-rinse external pool
• DE22S Decon unit without external pool
• DE22D Dual decon unit
All three types are designed to be integrated with Our inflatable shelter Type 22. Other sizes and configurations are
available upon request.
|
 |
1. FEATURES
• rapid assembly
• requires only one person to deploy
• it can be easily repaired
• removable/replaceable bottom
• removable/replaceable shower curtain
• all materials are fire resistant
• compatible with Our inflatable shelters
• customer’s logo can be added upon request
• continuous decontamination: one person after another |
2.SAFETY
• contamination of the environment through the basin or shower curtain is not possible
• built-in safety valve prevents damage to support structure
• made of heavy duty material
• all materials used are fire resistant
• inflatable support structure remains stable up to 48 hours |
3.INCLUDED WITH DECON UNITS
• inflatable support structure with pressure relief valve, quick inflation valve and quick deflation valve
• removable bottom
• removable top cover
• entrance and exit doors
• customer’s logo at entrance
door, inside decon chamber, exit
door |
