Hazmat Pneumatic Plugs

Pipe Pluds Strom Drain Sealing Kit Leak sealing wedges and cones PIPE PLUG KIT
Decontamination Unit
PLUGY and PLUGSY STORM-DRAIN SEALING KIT SEALING WEDGES AND CONES PIPE PLUG KIT Decontamination Unit

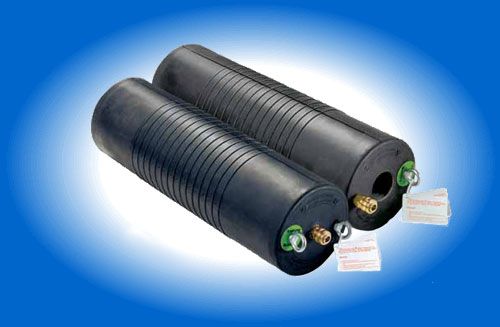

PLUGY and PLUGSY
Multi-size plugs for pipes, sewer and storm drains

Plugy (for blocking flow) and Plugsy (flow-through).

Surface ribs promote superior grip inside the pipe. Advanced rubber compound and Rayon-Kevlar reinforcement make it possible for one plug (multi-size) to perform equally well in several different size pipes reducing the number of plugs needed.


Multi-size pipe plugs are equipped with interchangeable inflation couplers and eyelet bolts
for lifting.


Plugs are flexible and can easily bend around corners and angles.


Use Plugy pipe plugs to block flow.


Use Plugsy pipe plugs to block flow and pump down or drain liquids behind the plug.

Oil-Resistant Plug
Special order Chloorpene rubber pipe plugs are available for contact with petroleum products.

Pipe Plugs
Protective Sleeve
Part Number
Protective Sleeve Type
Product Weight (kg)
510395
350-600
3.55
510396
375-750
4.63
510397
500-1000
5.48
527496
600-1200
18.60
510399
750-1500
24.50
535884
800-1800
29.70



Size PLUGY - PLUGSY Back pressure measured in dry iron pipe (bar)
40 70 100 150 200 250 300 350 400 500 600 800 1000 1200 1300 1400 1500 0.41600 1700 1800
40-70 2.0 1.2
70-150

  2 .2 1.7 1.3
100-200     2 .2 1.7 1.3
150-200       2 .0 1.5
150-300       2 .2 2.0 1.4 1.2
200-400         2 .2 2.0 1.7 1.5 1.2
300-525             2 .0 1.7 1.5 1.2
350-600               2 .1 1.9 1.6 1.6
375-750                 2.0 1.7 1.4
500-800                   1 .8 1.4 1.1
500-1000                   1.0 0.8 0.6 0.5
600-1200                     1.0 0.7 0.6 0.5
750-1500                       1.0 0.9 0.7 0.6 0.5 0.4
800-1800                       1.0 1.0 0.8 0.7 0.6 0.5 0.5 0.4 0.4

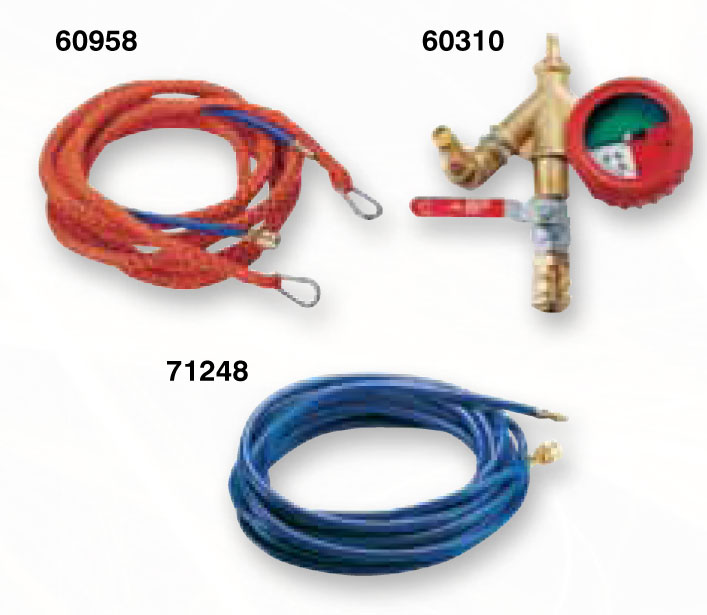

Pipe Plugging Accessories

Accessories
Code Description Weight (kg)
71248

Plug inflation hose with quick coupling and nipple, fi 8mm, 10m, blue, 2.5 bar (compressor to controller hose) 1.20
529703 Plug inflation hose with quick coupling and nipple, fi 8mm, 10m, blue, 1.5 bar 1.20
60310 Single controller with pressure gauge, relief and ball valve; 2.5 bar 0.90
529663 Single controller with pressure gauge, relief and ball valve; 1.5 bar 0.90
74653 Single controller with pressure gauge, relief and ball valve; 1.0 bar 0.90
60958 Poly lift hose 10 m 1.85








Back to top

STORM-DRAIN SEALING KIT

Quickly seal roadside storm-drains in the event of a chemical spill.


Inflatable pipe plugs keep contaminates out of drainage systems.


Basic Kit 100-150 includes four plugs to seal both sides of the street. Foot pump precisely fills plugs to the required pressure. Completely self-contained kits include all inflation and safety accessories.


Large pipe sealing kit 300-500 seals larger pipes. High pressure air source is included to speed up high volume plug inflation.


Plugs can be standard, long-life rubber compound or oil-resistant Chloroprene compound.


Non-corrosive case fits in standard equipment areas on police and other emergency vehicles.

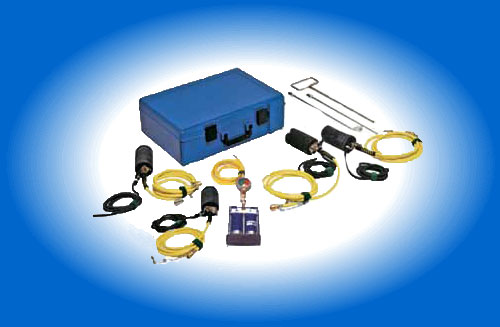

100 - 150 Kit

Sava Gully 100-150 2.5 bar SET (above right) consists of:
Code Description Quantity Weight (kg)
528571

Pipe plug 100-150 2,5bar with inflation hose 2,5 m and rope 2,5m

4 0.90
528875 Foot pump with safety valve and pressure gauge 2,5 bar 1 2.50
528744 Positioning rod, 1,5m, 3-part 1 2.18
528871 Portable case, 600 x 400 x 135 1 3.40



Sava Gully 300-500 0.5 bar SET (below) consists of:
Code Description Quantity Weight (kg)
528157




Gully plug 300-500 0,5bar with inflation hose 2 m and rope 2 m

4 0.90
529385 Pressure regulator / reducer 1 2.50
523002 Air compressed cylinder 200bar, 1l 1 2.18
528871 Portable case, 600 x 400 x 135 1 3.40



Technical data
Part Number Nominal Size EU Size Usage Range Required

Required inflation pressure bar

Deflated Plug Rubber body length mm Product weight kg Inflation Valve
min diameter mm max diameter mm Diameter mm Length mm Thread Size
528571
10-15 100 150 2.50 86 200 165 0.50 R 1/4"
528157 30-50 300 500 0.50 274 385 350 3.80

R 1/4"


Back to top

SEALING WEDGES AND CONES

Sealing wedges and sealing cones are new additions to the Sava sealing products line. Sealing wedges and cones are used for quick sealing of cracks or slot shaped punctures on ground storage tanks or tankers on trucks and railcars. Three different size wedge shaped plugs are included, which can be used for sealing cracks (15 - 60 mm). One cone shaped plug is included, which can be used for sealing holes 30 - 90 mm. diameter.


The remote placement pole, (push and inflation rod) and spray deflector can be used to install and inflate cones or wedges from a distance. Anti-corrosive case is small enough to easily fit in emergency vehicle cabinets.


Foot pump, hose and air controller included. Use compressed air source or inflate with the floor pump. Completely self-contained.

 Leak sealing wedges and cones

product details

Sava leak sealing lances SET consists of :
Code Description Quantity Weight (kg)
528386

Wedge-shaped sealing bag Type 1

1 0.36
528387 Wedge-shaped sealing bag Type 2 1 0.42
528388 Wedge-shaped sealing bag Type 3 1 0.54
528389 Cone-shaped sealing bag 1 0.27
528618 Push and inflation rod, 35cm, chain, deflation nipple 1 0.45
528619 Push and inflation rod, 35cm 3 0.41
529510 Shut off unit 1 0.90
528873 Foot pump with safety valve 1.5 bar 1 2.50
528871 Portable case 600x400x135mm 1 3.40
529087 Splash disc 1 0.04
Technical data
Part Number Nominal Size EU Size Usage Range

Required inflation pressure bar

Deflated Plug Product weight kg Inflation Valve
height mm width mm length mm width mm height mm Thread Size
528386 23 x 6 x 5

15-45

60-80 1.5 230 60 50 0.30 R 1/4"
528387 23 x 8 x 5.5 15-45 80-110 1.5 230 80 55 0.40

R 1/4"

528388 23 x 11 x 7 30-60 110-170 1.5 230 110 70 0.50 R 1/4"
528389 23 x Ø 7 30-90 - 1.5 230 Ø 7 Ø 7 0.30 R 1/4"






Back to top

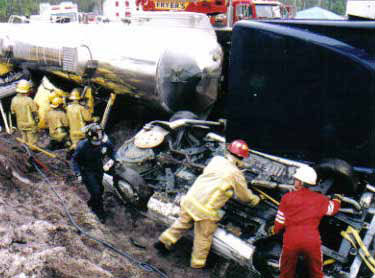

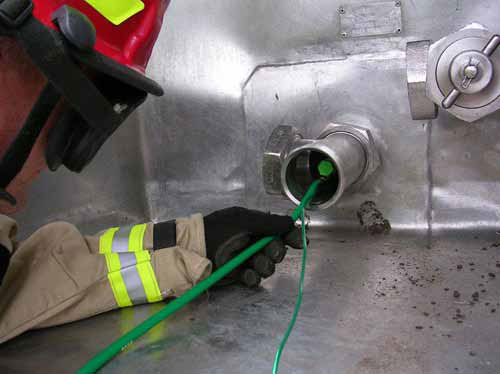

PIPE PLUG KIT

Quickly plug leaks the safe way. Flow-through plugs allow liquids and fuels to be blocked, pumped or drained from transport trucks, rail tankers and many other types of fuel tanks or liquid chemical tanks.


Sava Pipe Plug Kits meet and exceed DOT approved guidelines. All parts are electrostatic and friction spark
protected. All metal parts are corrosion resistant. Special rubber compounds insure adequate resistance to various chemicals, fuels and liquid hydrocarbons. Assortment of multi-size pipe plugs to fit pipes from 1/8” up to 6” in diameter. Each pipe plug has multiple uses and each plug fits a range of pipe sizes. Kit includes rubber pipe plugs, cork assortment, Pelican case, grounding straps, CO² power inflator with integrated back-up hand-pump, and several self-grounding extension hoses. Take as-is or mix and match to meet your specific requirements. Larger plugs are available. Sava inflatable pipe plugs come in a range of sizes from 1” up to 96” in diameter.

 PIPE PLUG KIT
pipe plug kit


Back to top

Decontamination Unit

Inflatable decon shower units are used for emergency decontamination in cases of exposure to hazardous waste materials, chemical spills, as well as chemical and biological WMDs.

Therefore, it should be standard equipment for hazmat response teams.

Our decon units are produced in three different versions:

• DE22 Decon unit with pre-rinse external pool
• DE22S Decon unit without external pool
• DE22D Dual decon unit

All three types are designed to be integrated with Our inflatable shelter Type 22. Other sizes and configurations are

available upon request.



 Decontamination Unit
1. FEATURES
• rapid assembly
• requires only one person to deploy
• it can be easily repaired
• removable/replaceable bottom
• removable/replaceable shower curtain
• all materials are fire resistant
• compatible with Our inflatable shelters
• customer’s logo can be added upon request
• continuous decontamination: one person after another
2.SAFETY
• contamination of the environment through the basin or shower curtain is not possible
• built-in safety valve prevents damage to support structure
• made of heavy duty material
• all materials used are fire resistant
• inflatable support structure remains stable up to 48 hours
3.INCLUDED WITH DECON UNITS
• inflatable support structure with pressure relief valve, quick inflation valve and quick deflation valve
• removable bottom
• removable top cover
• entrance and exit doors
• customer’s logo at entrance
door, inside decon chamber, exit
door
